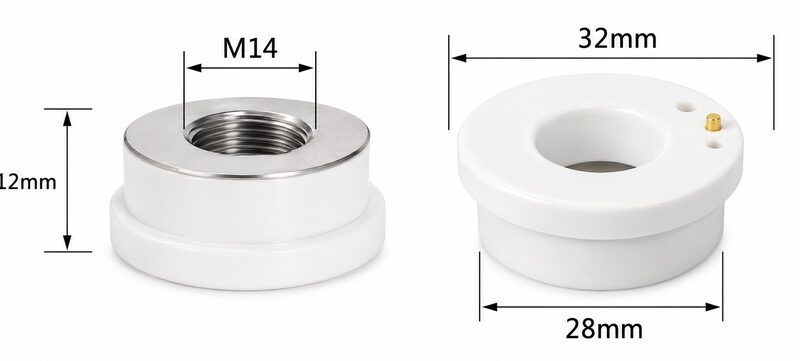

Ceramic Ring Standard — D32 × M14 Thread

SKU: NX-CR-D32-M14-S

High-purity alumina ceramic isolation ring for capacitive height-sensing systems. D32×12mm, M14×1 thread. Gold-plated and standard variants. Compatible with Raytools, Precitec, WSX, Han's, BOCI.

CONFIGURE

THREADM14 × 1

TYPEStandard (White)

OUTER DIAMETER32mm

INNER BORE14mm

HEIGHT12mm

COMPATIBLE BRANDSRaytools

$14.00/ pc

MOQ 3 pcs · Volume discounts from 50 pcs

VOLUME PRICING

3 – 49 pcs$14.00 / pc

50 – 199 pcs$12.60 –10%

200+ pcs$11.20 –20%

Request bulk quote for 50+ pcs

In stock · ships within 48 hr from Taizhou

Third-party QC report included with every order

DDP shipping to EU and US warehouses available

30-day defective return policy

NEXORA ceramic rings are precision-machined from 99.5% alumina ceramic and dimensionally verified against original equipment samples. Each ring provides electrical isolation between the nozzle and the cutting head body for reliable capacitive height sensing.

Technical Specifications

Material	99.5% Alumina ceramic
Thread	M14 × 1
Outer diameter	32 mm
Inner bore	14 mm
Height	12 mm
Temperature rating	1,600°C
Variants	Standard (white) / Gold-plated

Compatibility

Verified fitments: Raytools BM110 / BT240S / AT300 / BM114 · Precitec ProCutter 2.0 / YC50 / HP · WSX NC12 / NC30 · Han's G3015 / G4020 · BOCI standard series
