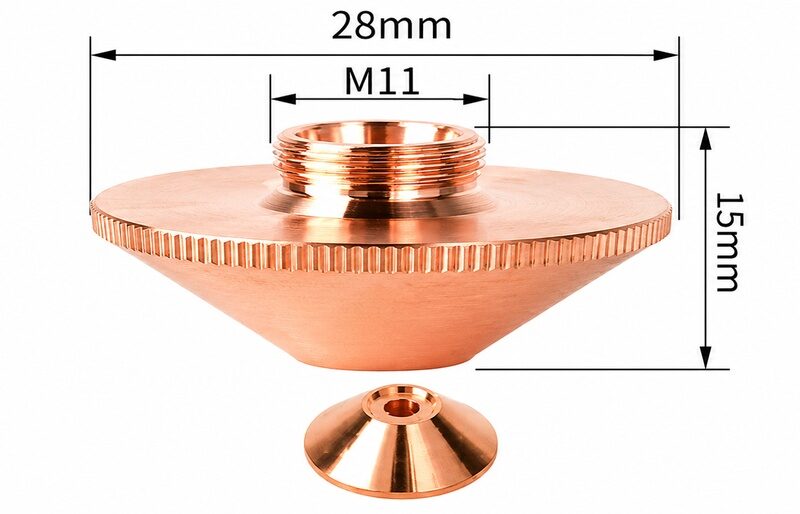

D28 Double Layer Copper Nozzle — M11 Thread

SKU: NX-N-D28-D-1.0

CNC-machined double-layer copper nozzle. D28 family, M11×1 thread, 28×15mm. Dual-layer construction for improved gas flow control and cutting edge quality. Bore diameters 1.0–4.0mm.

CONFIGURE

THREADM11 × 1

TYPEDouble Layer

OUTER DIAMETER28mm

HEIGHT15mm

BORE DIAMETER1.0mm

COMPATIBLE BRANDSRaytools

$5.50/ pc

MOQ 3 pcs · Volume discounts from 50 pcs

VOLUME PRICING

3 – 49 pcs$5.50 / pc

50 – 199 pcs$4.95 –10%

200+ pcs$4.40 –20%

Request bulk quote for 50+ pcs

In stock · ships within 48 hr from Taizhou

Third-party QC report included with every order

DDP shipping to EU and US warehouses available

30-day defective return policy

NEXORA D28 double-layer nozzles feature a precision inner tip insert for enhanced gas flow geometry, reducing dross on thick materials and improving edge quality in high-speed cutting. All nozzles are machined from oxygen-free copper and pressure-tested before dispatch.

Technical Specifications

Type	Double layer (inner tip + outer body)
Thread	M11 × 1
Outer diameter	28 mm
Height	15 mm
Bore diameter options	1.0 / 1.5 / 2.0 / 2.5 / 3.0 / 3.5 / 4.0 mm
Material	Oxygen-free copper (C101)
Surface finish	Natural copper / Chrome-plated (optional)

Compatibility

Fits all M11 cutting heads: Raytools BM110, BT240S, AT300 · Precitec ProCutter, YC50 · WSX NC12, NC30 · BOCI · Han's · Ospri · Qilin · Relfar.
