D28 Single Layer Copper Nozzle — M11 Thread

SKU: NX-N-D28-S-1.0

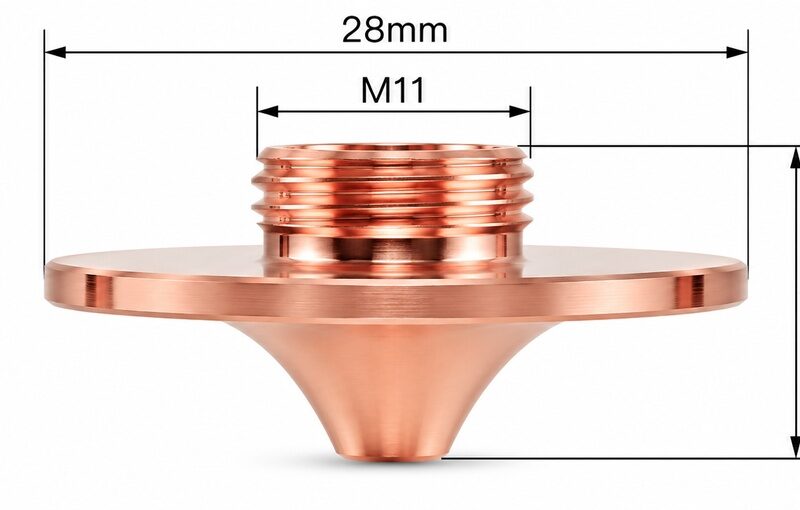

CNC-machined high-purity copper single-layer cutting nozzle. D28 family, M11×1 thread, 28×15mm. Bore diameters 1.0–4.0mm available. Compatible with Raytools, Precitec, WSX, BOCI, Han's and all M11 cutting heads.

CONFIGURE

COMPATIBLE BRANDSRaytools

THREADM11 × 1

TYPESingle Layer

OUTER DIAMETER28mm

HEIGHT15mm

BORE DIAMETER1.0mm

$4.50/ pc

MOQ 3 pcs · Volume discounts from 50 pcs

VOLUME PRICING

3 – 49 pcs$4.50 / pc

50 – 199 pcs$4.05 –10%

200+ pcs$3.60 –20%

Request bulk quote for 50+ pcs

In stock · ships within 48 hr from Taizhou

Third-party QC report included with every order

DDP shipping to EU and US warehouses available

30-day defective return policy

NEXORA D28 single-layer copper nozzles are CNC-machined from high-purity copper and pressure-tested before dispatch. Consistent bore geometry ensures stable gas flow and clean cut edges across all material types.

Technical Specifications

Type	Single layer
Thread	M11 × 1
Outer diameter	28 mm
Height	15 mm
Bore diameter options	1.0 / 1.5 / 2.0 / 2.5 / 3.0 / 3.5 / 4.0 mm
Material	High-purity copper (oxygen-free)
Surface finish	Natural copper / Chrome-plated (optional)

Compatibility

Fits all cutting heads using M11 thread: Raytools BM110, BT240S, AT300 · Precitec ProCutter, YC50 · WSX NC12, NC30 · BOCI · Han's · Ospri · Qilin and others.

Specify bore diameter when ordering. Custom bore sizing available above 500 pcs.
